Usmerjevalnik za hitro kopiranje za aluminijasta okenska vrata
Specifikacije produkta
Model | LSXZ1B -125 |
Napetost moči | 380V / Others |
Vhodna moč | 1.1KW |
Hitrost vrtenja motorja | 2800 r/min |
Zračni tlak | 0. 5 - 0 8 MPa |
Rotacijska hitrost motorja | 0-12000 r / min |
Območje rezkanja | 100x300mm |
Premer freze | Φ5mm ,Φ8mm |
Ponovite toleranco dolžine lokacije | + / - 0 |
Splošna dimenzija | 800*950*1500mm |
Utež | 350 KG |
Glavne značilnosti

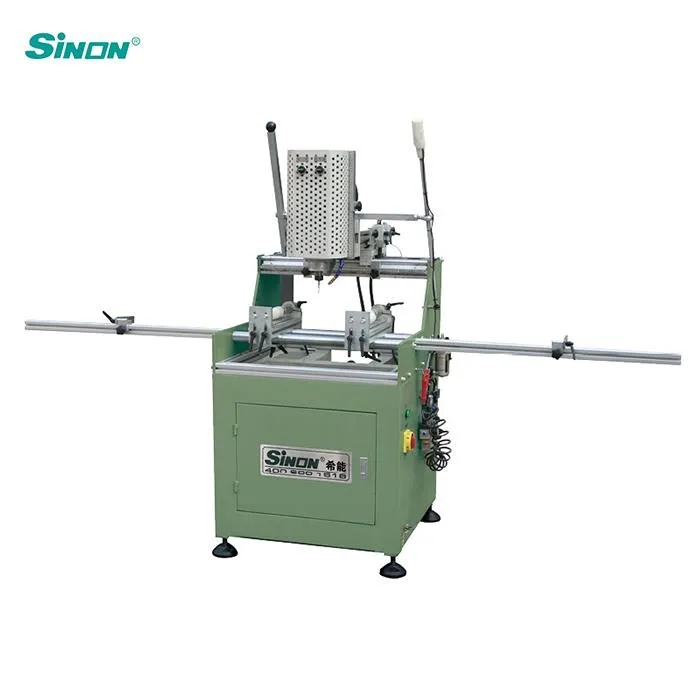

1. This copy router machine is for milling & amp; drilling various hole ,slot of aluminum window door ,aluminum curtain wall.
2. Heavy duty machine, can process large aluminium profiles or other light metal.
3. Using a foot switch to control the compression cylinder, it is safe.
4. The spindle connection seat is cast aluminum plate, which is not easy to be deformed.
5. It has larger processing range than other machines.
6. It & #39;s spindle rotating speed could be adjusted by frequency converter.
